Place of Origin:
CHINA
Brand Name:
GPG
Certification:
CE
Model Number:
BLDC GEAR MOTOR 10W 20W 30W 40W
TaiBang Motor Industry Group Co.,Ltd
From the establishment in 1995, and then to the 40th anniversary of reform and opening up again; After more than 20 years of development and exploration, Taibang is moving forward in the reform with unswerving original intention.
Developed and produced Gear Motor, AC gearmotor 6W to 200W,DC motor 10W to 300W,Three phase motor 100W to 3700W, Worm gearbox, Brushless motor
GPG, gear motor, 110V motor,220V motor,380V motor,AC motor, DC motor
DC motor,6W,10W,15W,20W,electric motor, DC brush motor,GPG, gear motor, geared motor,AC gear motor
BLDC motor,20W,30W,35W,40W,electric motor, DC brush motor,GPG, gear motor, geared motor,AC gear motor
GDM04SGN-252420-4GN200K
Cow body brush motor with control panel,CH100W,CV22-100,100W motor,G series motor,100W,Cow brush motor,Cow motor,brush motor, CH/CV
Bookbanding machine gear motor,YN60-10,2RK10GN-C,10W,15W,20W motor ,bookbanding gear motor, bookbanding motor
Gear motor, CH motor. CV motor,100W gear motor,single phase, three phase
GEAR MOTOR, AC GEAR MOTOR, CV,CH MOTOR,GPG MOTOR,220V,380V,400V GEAR MOTOR,CH400,CV400
| TYPE | Gear tooth Output Shaft | Power (W) |
DC Voltage (V) |
Current (A) |
Motor Speed (RPM) |
Rated Torque (N.M) |
Gearbox type | |
| Bearing gearbox | Middle Gearbox | |||||||
| BLDC MOTOR | G2BLD10-12-18S | 10 | 12 | 1.28 | 1800 | 0.053 | 2GN-K | 2GN10X |
| G2BLD10-24-18S | 10 | 24 | 0.64 | 1800 | 0.053 | 2GN-K | 2GN10X | |
| G2BLD15-12-18S | 15 | 12 | 1.92 | 1800 | 0.080 | 2GN-K | 2GN10X | |
| G2BLD15-24-18S | 15 | 24 | 0.96 | 1800 | 0.080 | 2GN-K | 2GN10X | |
| G2BLD20-12-18S | 20 | 12 | 2.56 | 1800 | 0.106 | 2GN-K | 2GN10X | |
| G2BLD20-24-18S | 20 | 24 | 1.28 | 1800 | 0.106 | 2GN-K | 2GN10X | |
| G2BLD25-12-18S | 25 | 12 | 3.21 | 1800 | 0.133 | 2GN-K | 2GN10X | |
| G2BLD25-24-18S | 25 | 24 | 1.60 | 1800 | 0.133 | 2GN-K | 2GN10X | |
| G2BLD30-12-18S | 30 | 12 | 3.85 | 1800 | 0.159 | 2GN-K | 2GN10X | |
| G2BLD30-24-18S | 30 | 24 | 1.92 | 1800 | 0.159 | 2GN-K | 2GN10X | |
| G2BLD40-12-18S | 40 | 12 | 5.13 | 1800 | 0.212 | 2GN-K | 2GN10X | |
| G2BLD40-24-18S | 40 | 24 | 2.56 | 1800 | 0.212 | 2GN-K | 2GN10X | |
| TYPE | Gear tooth Output Shaft | Power (W) |
DC Voltage (V) |
Current (A) |
Motor Speed (RPM) |
Rated Torque (N.M) |
Gearbox type | |
| Bearing gearbox | Middle Gearbox | |||||||
| BLDC MOTOR | G2BLD10-12-30S | 10 | 12 | 1.28 | 3000 | 0.032 | 2GN-K | 2GN10X |
| G2BLD10-24-30S | 10 | 24 | 0.64 | 3000 | 0.032 | 2GN-K | 2GN10X | |
| G2BLD15-12-30S | 15 | 12 | 1.92 | 3000 | 0.048 | 2GN-K | 2GN10X | |
| G2BLD15-24-30S | 15 | 24 | 0.96 | 3000 | 0.048 | 2GN-K | 2GN10X | |
| G2BLD20-12-30S | 20 | 12 | 2.56 | 3000 | 0.064 | 2GN-K | 2GN10X | |
| G2BLD20-24-30S | 20 | 24 | 1.28 | 3000 | 0.064 | 2GN-K | 2GN10X | |
| G2BLD25-12-30S | 25 | 12 | 3.21 | 3000 | 0.080 | 2GN-K | 2GN10X | |
| G2BLD25-24-30S | 25 | 24 | 1.60 | 3000 | 0.080 | 2GN-K | 2GN10X | |
| G2BLD30-12-30S | 30 | 12 | 3.85 | 3000 | 0.096 | 2GN-K | 2GN10X | |
| G2BLD30-24-30S | 30 | 24 | 1.92 | 3000 | 0.096 | 2GN-K | 2GN10X | |
| G2BLD40-12-30S | 40 | 12 | 5.13 | 3000 | 0.127 | 2GN-K | 2GN10X | |
| G2BLD40-24-30S | 40 | 24 | 2.56 | 3000 | 0.127 | 2GN-K | 2GN10X | |
| Basic tech data: | |
| Motor type: DC gear motor | Insulation Class:B |
| Motor material:Aluminum ,Copper,Steel | IP grade:IP40 |
| Rotation:CW/CCW reversible | Working style:S1 |

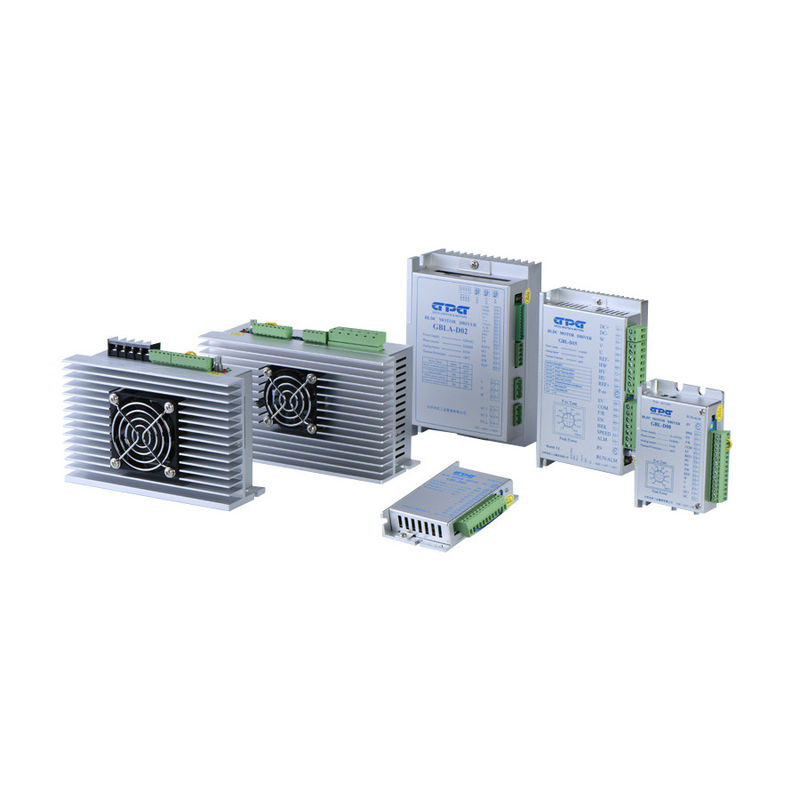

| DRIVER:D03,D05 | Operating temperature range: -10 °C～+50°C |
| HS Code:850131 | Operating relative humidity: 95% Below |
