Place of Origin:
WENZHOU CHINA
Brand Name:
GPG
Certification:
CE
Model Number:

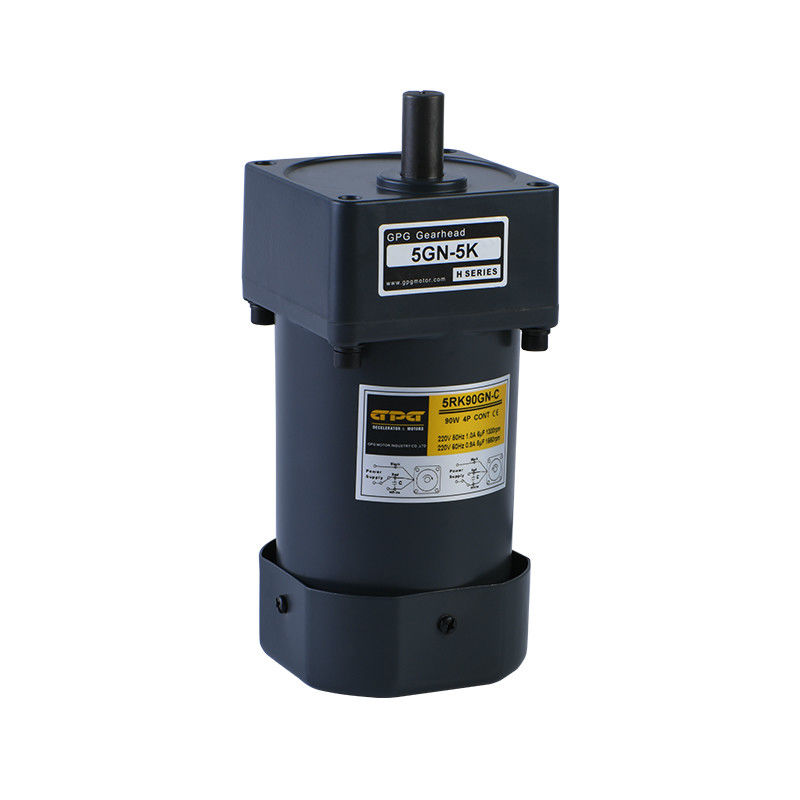

5RK90GN-CF 5GN3-200K
Select method
90W RK gear motor Series , IK gear motor Series, Speed control motor type,110V gear motor ,220V gear motor, constant speed gear motor
| Specification of motor 90W 90mm Fixed speed AC gear motor | ||||||||||||
| TYPE | Gear tooth Output Shaft |
Power (W) |
Frequency (Hz) |
Voltage (V) |
Current (A) |
Start Torque (g.cm) |
Rated | Start | Gearbox type | |||
|
Torque (g.cm) |
Speed (rpm) |
Capacity (μF) |
Resistance Voltage (V) |
Bearing gearbox | Middle Gearbox | |||||||
| Reversible Motor | 5RK90GN-CF | 90 | 50 | 220 | 1.0 | 6400 | 6750 | 1300 | 6.0 | 500 | 5GN/GU-K | 5GN10X |
| 90 | 60 | 220 | 0.9 | 5400 | 5650 | 1550 | 5.0 | 500 | 5GN/GU-K | 5GN10X | ||
Drawing:5RK90GN-CF/5GN3~20K (Short gearbox shell 43mm)
Drawing: 5RK90GN-CF/5GN25~180K (High gearbox shell 61mm)
| Gearbox torque table(Kg.cm) | (kg.cm×9.8÷100)=N.m | ||||||||||||||||||
| Output speed :RPM | 500 | 300 | 200 | 150 | 120 | 100 | 75 | 60 | 50 | 30 | 20 | 15 | 10 | 7.5 | 6 | 5 | 3 | ||
| Speed ratio | 50Hz | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 20 | 25 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 500 | |
| 60Hz | 3.6 | 6 | 9 | 15 | 18 | 30 | 36 | 60 | 90 | 120 | 180 | 300 | 360 | 600 | |||||
|
Allowed torque |
40W | kg.cm | 6.7 | 11 | 16 | 21.3 | 28 | 33 | 42 | 54 | 65 | 108 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| 60W | kg.cm | 10 | 16 | 24 | 32 | 40 | 48 | 64 | 77 | 93 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| 90W | kg.cm | 14 | 23 | 35 | 46 | 58 | 69 | 92 | 110 | 133 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
| 120W | kg.cm | 19 | 30.7 | 46 | 61 | 77 | 92 | 123 | 147 | 177 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
| Note: Speed figures are based on synchronous speed, The actual output speed, under rated torque conditions, is about 10-20% less than synchronous speed, a grey background indicates output shaft of geared motor rotates in the same direction as output shaft of motor. A white background indicates rotates rotation in the opposite direction. | |||||||||||||||||||
Drawing is for standard screw hole, If need through hole, terminal box, or electronic magnet brake, need to tell the seller.
| Basic tech data: | Retail price: |
| Motor type: AC gear motor | Insulation Class: E |
| Motor material: Aluminum , Copper, Steel | IP grade:IP44 |
| Rotation: CW/CCW reversible | Working style:S1 |
| Frequency: 50Hz/60Hz | Operating temperature range: -10 °C～+40°C |
| HS Code:8501400000 | Operating relative humidity: 95% Below |
Connection Diagram:
Q: How about your company?
A:We are gear motor factory located in Wenzhou city of China,we start from 1995 ,we have more than 1200 workers ,main products is AC micro gear motor 6W to 250W, AC small gear motor 100W to 3700W,brush DC motor 10W to 400W,brushless motor 10W to 750W,drum motor 60W to 3700W ,Planetary gearbox ,worm gearbox etc .
Q: How to choose a suitable motor?
A:If you have gear motor pictures or drawings to show us, or you tell us detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can suggest suitable motor per your request .
Q: Can you make the gear motor with customize specifications ?
Yes, we can customize per your request for the voltage, speed, torque and shaft size and shape. If you need additional wires or cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: What's your lead time?
A: Usually our regular standard product will need 10-15days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Q: What is your MOQ?
A: If delivery by sea ,the minimum order is 100 pieces, if deliver by express, there is no limit.
Q: Do you have the item in stock?
A: I am sorry we do not have the item in stock, All products are made with orders.
